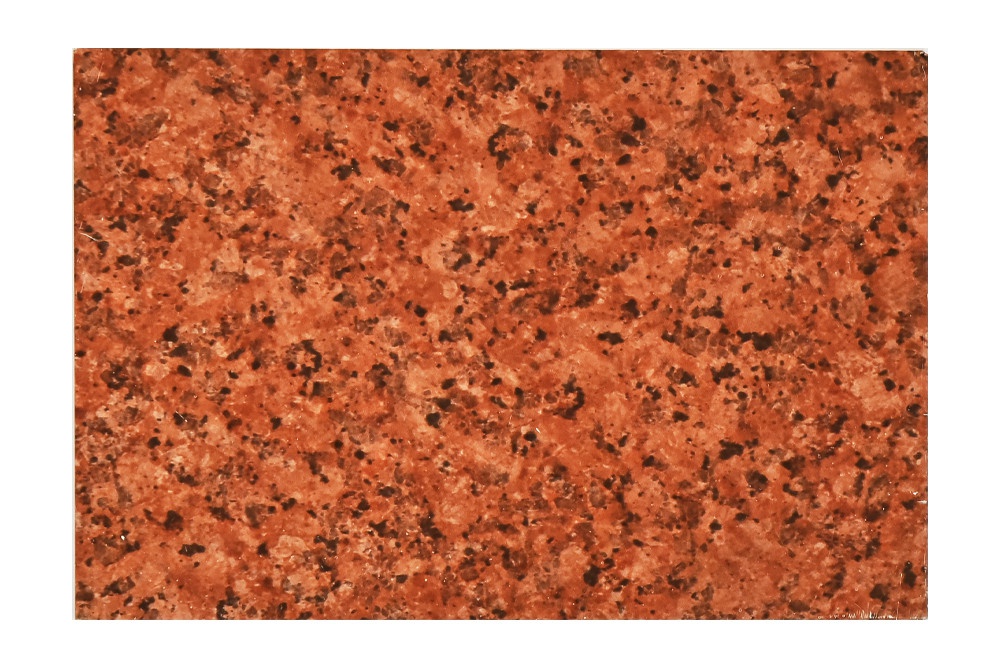

Imitation Stone Grain Aluminum Veneer
2.The weight is light, the installation is easy, and installation and maintenance costs can be saved
3.The colors of various points are highly selective, and there are many colors
4.The performance is excellent and the warranty period is up to 10-15 years
Performance introduction
As the imitation stone grain aluminum veneer produced by spraying
technology, the patterns and colors can be self-designed, the different needs
of the market can be met and the ideal design effect can be achieved. Compared
with stone curtain wall, imitation stone aluminum veneer curtain wall has many
advantages such as light weight, easy installation, good weather resistance and
low cost, especially its color and shape cannot be restricted by the cost and
resources of stone, it can be selected randomly based on the designer's rich
imagination, thus it is a kind of product expected in the market and is deeply
loved by architects. The bottom layers of many buildings are made of natural
stone slabs, high or special-shaped parts are made of imitation stone metal
plates with the same pattern, and the limitations of the installation weight
and cost of the high-rise buildings have been completely broken through.
Performances
and characteristics
1.The paint can be sprayed on the pure aluminum veneer, and the aluminum
veneer is recyclable and more environmentally friendly than stone
2.The weight is light, the installation is easy, and installation and
maintenance costs can be saved
3.The colors of various points are highly selective, and there are many
colors
4.The performance is excellent and the warranty period is up to 10-15
years
Field of use: Decoration projects of interior and exterior aluminum veneer for
high-end commercial buildings, stadiums, theaters, schools, museums, etc.
Technological parameters
|
Side length size deviation (side length≤2,000) |
Outdoor: ±2.0, indoor: -1.5-0 |
|
Side length size deviation (side length＞2,000) |
Outdoor: ±2.5, indoor: - 2.0-0 |
|
Diagonal deviation (side length≤2,000) |
Outdoor:≤2.5, indoor:≤2.0 |
|
Diagonal deviation (side length＞2,000) |
Outdoor: ≤3.0, indoor: ≤2.5 |
|
Resistant to artificial accelerated aging |
Color difference ≤3.0 |
|
Adhesion (cross-cut method) |
Grade 0 |
|
Pencil hardness |
≥1H |
Only produces high-quality products
Advanced production equipment- assurance of high-quality aluminum panels
The company is located in the southeast of the intersection of Xiangjiang Road and Xiaguang Road, Dong'e County Economic Development Zone, Shandong Province, covering an area of 68,000 square meters and with a registered capital of RMB 30 million, fixed assets of more than RMB 90 million and a total design investment of RMB 180 million.
The company has two leading CNC aluminum composite panel production lines at home and abroad currently, two aluminum veneer production lines, one aluminum veneer intelligent production line, and one color-coated aluminum foil CNC production line, and its products include:aluminum veneer, aluminum composite panel, color-coated aluminum foil, profiles spraying, sheets spraying, etc., the annual output of various aluminum composite panels is more than 3 million square meters, the annual output of various aluminum veneers is 3 million square meters, and the annual output of sheet after roller coating is 3.6 million square meters. The annual sales revenue of the company can reach RMB 760 million.
